Size Range : DN 1/4”- DN 8”(DN8-DN200) or bigger up to DN24”
Pressure range : up 414 bar (6000 psi)
Temperature range : -196°C to +650°C (-320°F to 1200°F)
Body Material : Stainless Steel, Super Duplex, Bronze, Cast iron, Ductil iron, carbon steel, pvc, brass
End Connection : Flanged ( DIN & ANSI ) , threaded ( NPT, BSPP , BSPT… and so on….), butt welded, orbital welded ( ISO1127pipe & BSOD pipe) , socket welded, Clamp, Compression Fitting2
Construction : Uni-directional, two -dirctional,three directionals ball valves, or needle valves
Specificates : full or reduced bore , anti blow sistems, fire safe, loocking device
Operation : manual with Lever or gear operated, or with Pneumatic or Electric Actuators

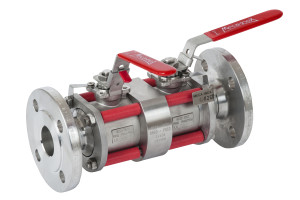

Specification : The Dual-Safe Valve series presents and optimal design solution and guarantees isolation on critical applications and service when an emergency shut-down (ESD) vale is a necessity. The DBB unit incorporates two main isolation valves and one bleed valve in a single body construction. This special construction offers the lowest possible number of potential leakage points from a process connection and reduces the overall valve envelope size and weight by integrating valves, piping, and fittings into one compact design.
